Aspire

Aspire Dashboard

A free & open-source OpenTelemetry dashboard for deep insights into your apps on your local development machine.

Aspire Dashboard

FEATURES

Essentials for developers

Get deep insight into your applications on your local development environment.

Full support for OpenTelemetry across a wide range of programming languages and frameworks including Python, Java, JavaScript, Ruby, Rust, .NET, Swift, and so much more!

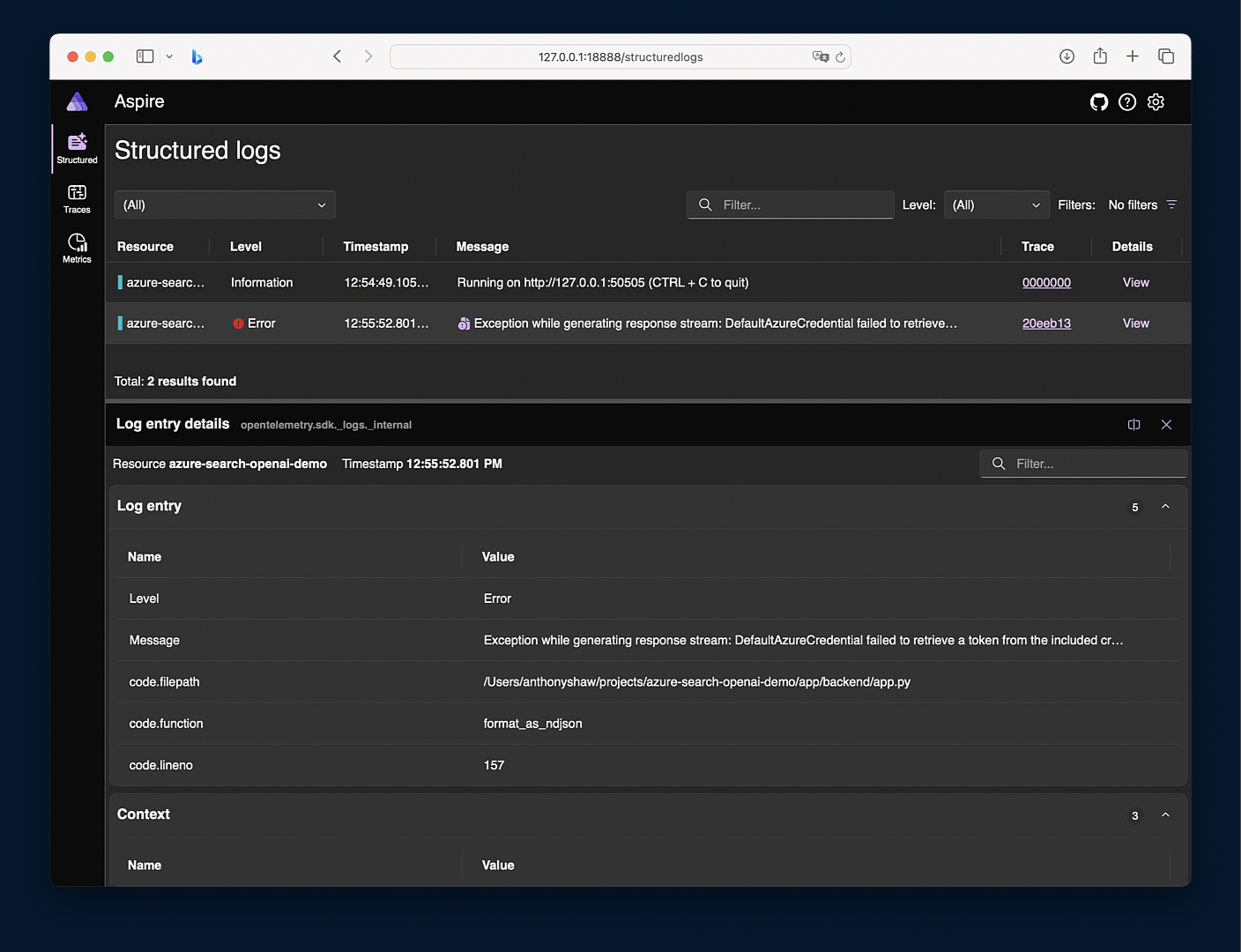

Logs

Logs

Detailed debugging and diagnostics with with structured and unstructured log views.

Metrics

Metrics

Analyze quantitative data about your apps behavior and performance.

Traces

Traces

Understand the flow of requests and identify performance bottlenecks.

Dependencies

Dependencies

Understand how your app is orchestrated and how the components work together.

GET STARTED

Get the container


            //Bash
docker run --rm -it \
    -p 18888:18888 -p 4317:18889 \
    -d --name aspire-dashboard \
    -e DOTNET_DASHBOARD_UNSECURED_ALLOW_ANONYMOUS="true" \
    mcr.microsoft.com/dotnet/aspire-dashboard:8.1.0


//PowerShell
docker run --rm -it `
    -p 18888:18888 -p 4317:18889 `
    -d --name aspire-dashboard `
    -e DOTNET_DASHBOARD_UNSECURED_ALLOW_ANONYMOUS="true" `
    mcr.microsoft.com/dotnet/aspire-dashboard:8.1.0



The container has two ports:

  • Port 4317 receives OpenTelemetry data from apps. Apps send data using OpenTelemetry Protocol (OTLP).
  • Port 18888 has the dashboard UI. Navigate to http://localhost:18888 in the browser to view the dashboard.

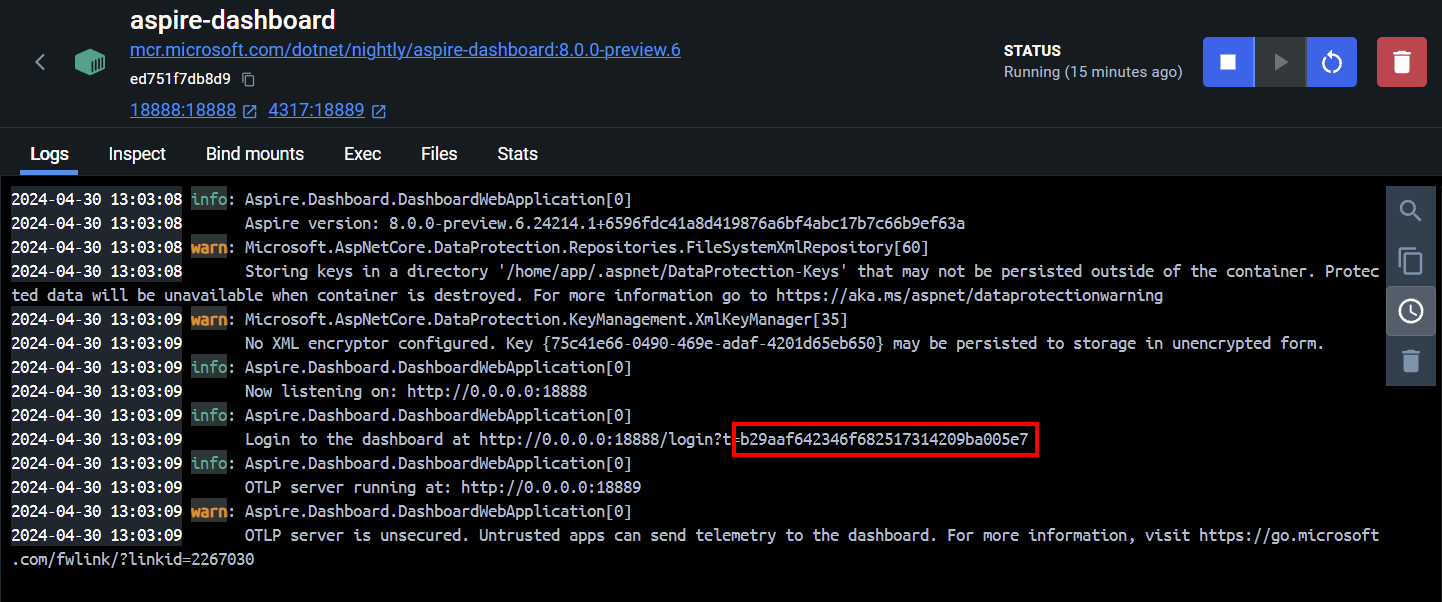

Login to dashboard

Data displayed in the dashboard can be sensitive. By default, the dashboard is secured with authentication that requires a token to login. The login token is printed to the container logs. After copying the highlighted token into the login page at http://localhost:18888, select the Login button.
Login to dashboard

Easily integrate into your apps

Install and setup OpenTelemetry in your app.


// Getting Started Doc: https://opentelemetry.io/docs/languages/python/getting-started/
// Use gRPC OTEL Exporter: https://opentelemetry.io/docs/languages/python/exporters/#otlp-dependencies

# 1. Update requirements.txt
opentelemetry-distro
opentelemetry-exporter-otlp-proto-grpc

# 2. Use gRPC exporter for OTLP

from opentelemetry.sdk.resources import SERVICE_NAME, Resource

from opentelemetry import trace
from opentelemetry.exporter.otlp.proto.grpc.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor

from opentelemetry import metrics
from opentelemetry.exporter.otlp.proto.grpc.metric_exporter import OTLPMetricExporter
from opentelemetry.sdk.metrics import MeterProvider
from opentelemetry.sdk.metrics.export import PeriodicExportingMetricReader

from opentelemetry._logs import set_logger_provider
from opentelemetry.exporter.otlp.proto.grpc._log_exporter import (
    OTLPLogExporter,
)
from opentelemetry.sdk._logs import LoggerProvider, LoggingHandler
from opentelemetry.sdk._logs.export import BatchLogRecordProcessor
from opentelemetry.sdk.resources import Resource

def configure_otel_otlp(service_name: str = "my-python-app", endpoint: str = "http://localhost:4317", insecure=True):
    # Service name is required for most backends
    resource = Resource(attributes={
        SERVICE_NAME: service_name
    })


    # Configure Tracing
    traceProvider = TracerProvider(resource=resource)
    processor = BatchSpanProcessor(OTLPSpanExporter(endpoint=endpoint, insecure=insecure))
    traceProvider.add_span_processor(processor)
    trace.set_tracer_provider(traceProvider)

    # Configure Metrics
    reader = PeriodicExportingMetricReader(
        OTLPMetricExporter(endpoint=endpoint, insecure=insecure)
    )
    meterProvider = MeterProvider(resource=resource, metric_readers=[reader])
    metrics.set_meter_provider(meterProvider)

    # Configure Logging
    logger_provider = LoggerProvider(
        resource=resource
    )
    set_logger_provider(logger_provider)

    exporter = OTLPLogExporter(insecure=insecure)
    logger_provider.add_log_record_processor(BatchLogRecordProcessor(exporter))
    handler = LoggingHandler(level=logging.NOTSET, logger_provider=logger_provider)

    # Attach OTLP handler to root logger
    logging.getLogger().addHandler(handler)


# 3. Update application entry

from flask import Flask
from opentelemetry.instrumentation.flask import FlaskInstrumentor
from otel_grpc import configure_otel_otlp

app = Flask(__name__)

configure_otel_otlp()

FlaskInstrumentor().instrument_app(app)

Install and setup OpenTelemetry in your app.


// Getting Started Doc: https://opentelemetry.io/docs/languages/js/getting-started/nodejs/
// Use gRPC OTEL Exporter: https://opentelemetry.io/docs/languages/js/exporters/#otlp-dependencies

// 1. Install following dependencies
npm install @opentelemetry/sdk-node \
  @opentelemetry/api \
  @opentelemetry/auto-instrumentations-node \
  @opentelemetry/sdk-metrics \
  @opentelemetry/sdk-trace-node \
  @opentelemetry/exporter-trace-otlp-grpc \
  @opentelemetry/exporter-metrics-otlp-grpc

// create instrumentation.js
/*instrumentation.js*/
const opentelemetry = require('@opentelemetry/sdk-node');
const { getNodeAutoInstrumentations,} = require('@opentelemetry/auto-instrumentations-node');
const { OTLPTraceExporter } = require('@opentelemetry/exporter-trace-otlp-grpc');
const { OTLPMetricExporter} = require('@opentelemetry/exporter-metrics-otlp-grpc');
const { PeriodicExportingMetricReader } = require('@opentelemetry/sdk-metrics');
const { Resource } = require('@opentelemetry/resources');
const { SEMRESATTRS_SERVICE_NAME, SEMRESATTRS_SERVICE_VERSION } = require('@opentelemetry/semantic-conventions');

const sdk = new opentelemetry.NodeSDK({
  traceExporter: new OTLPTraceExporter(),
  metricReader: new PeriodicExportingMetricReader({
    exporter: new OTLPMetricExporter(),
  }),
  instrumentations: [getNodeAutoInstrumentations()],
  resource: new Resource({
    [SEMRESATTRS_SERVICE_NAME]: 'my-nodejs-app',
    [SEMRESATTRS_SERVICE_VERSION]: '0.1.0',
  }),
});
sdk.start();

// start app: node --require ./instrumentation.js app.js
// sample code: https://github.com/aspire-dashboard/express-sample


Install and setup OpenTelemetry in your app.


// Getting Started Doc: https://opentelemetry.io/docs/languages/java/getting-started/
// Use gRPC OTEL Exporter: https://opentelemetry.io/docs/languages/java/exporters/#otlp-dependencies


// 1. Insall dependencies
//Gradle:
dependencies {
    implementation 'io.opentelemetry:opentelemetry-exporter-otlp:1.39.0'
}

// 2. Configure exporter
env OTEL_EXPORTER_OTLP_ENDPOINT=http://example:4317 java -jar ./build/libs/java-simple.jar

// 3. Integrate with your application

package otel;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.Banner;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.api.common.Attributes;
import io.opentelemetry.api.trace.propagation.W3CTraceContextPropagator;
import io.opentelemetry.context.propagation.ContextPropagators;
import io.opentelemetry.exporter.otlp.metrics.OtlpGrpcMetricExporter;
import io.opentelemetry.exporter.otlp.trace.OtlpGrpcSpanExporter;
import io.opentelemetry.exporter.otlp.logs.OtlpGrpcLogRecordExporter;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.metrics.SdkMeterProvider;
import io.opentelemetry.sdk.metrics.export.PeriodicMetricReader;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.BatchSpanProcessor;
import io.opentelemetry.sdk.logs.export.BatchLogRecordProcessor;
import io.opentelemetry.sdk.logs.SdkLoggerProvider;
import io.opentelemetry.sdk.logs.export.LogRecordExporter;
import io.opentelemetry.semconv.resource.attributes.ResourceAttributes;

@SpringBootApplication
public class DiceApplication {
  public static void main(String[] args) {
    SpringApplication app = new SpringApplication(DiceApplication.class);
    app.setBannerMode(Banner.Mode.OFF);
    app.run(args);
  }

  @Bean
  public OpenTelemetry openTelemetry() {
    Resource resource = Resource.getDefault().toBuilder().put(SERVICE_NAME, "dice-server").put(SERVICE_VERSION, "0.1.0").build();

    SdkTracerProvider sdkTracerProvider = SdkTracerProvider.builder()
            .addSpanProcessor(BatchSpanProcessor.builder(OtlpGrpcSpanExporter.builder().build()).build())
            .setResource(resource)
            .build();

    SdkMeterProvider sdkMeterProvider = SdkMeterProvider.builder()
            .registerMetricReader(PeriodicMetricReader.builder(OtlpGrpcMetricExporter.builder().build()).build())
            .setResource(resource)
            .build();

    SdkLoggerProvider sdkLoggerProvider = SdkLoggerProvider.builder()
            .addLogRecordProcessor(
                    BatchLogRecordProcessor.builder(OtlpGrpcLogRecordExporter.builder().build()).build())
            .setResource(resource)
            .build();

    OpenTelemetry openTelemetry = OpenTelemetrySdk.builder()
        .setTracerProvider(sdkTracerProvider)
        .setMeterProvider(sdkMeterProvider)
        .setLoggerProvider(sdkLoggerProvider)
        .setPropagators(ContextPropagators.create(W3CTraceContextPropagator.getInstance()))
        .buildAndRegisterGlobal();

    return openTelemetry;
  }
}

Install and setup OpenTelemetry in your app.


// Getting Started Doc: https://opentelemetry.io/docs/languages/net/getting-started/
// Use gRPC OTEL Exporter: https://opentelemetry.io/docs/languages/net/exporters/#otlp-dependencies

// 1. Install OpenTelemetry NuGet Packages

dotnet add package OpenTelemetry.Exporter.OpenTelemetryProtocol
dotnet add package OpenTelemetry.Extensions.Hosting
dotnet add package OpenTelemetry.Instrumentation.Http
dotnet add package OpenTelemetry.Instrumentation.Runtime

// 2. Optional Hosting Extensions
dotnet add package Microsoft.Extensions.Hosting

// 3. Add configuration endpoint in environment variables

"OTEL_EXPORTER_OTLP_ENDPOINT": "http://localhost:4317"

// 4. Configure open telemetry in your app

using ConsoleApp;
using OpenTelemetry;
using OpenTelemetry.Metrics;
using OpenTelemetry.Resources;
using OpenTelemetry.Trace;

var builder = Host.CreateApplicationBuilder(args);

ConfigureOpenTelemetry(builder);

var host = builder.Build();
host.Run();

static IHostApplicationBuilder ConfigureOpenTelemetry(IHostApplicationBuilder builder)
{
    builder.Logging.AddOpenTelemetry(logging =>
    {
        logging.IncludeFormattedMessage = true;
        logging.IncludeScopes = true;
    });

    builder.Services.AddOpenTelemetry()
        .ConfigureResource(c => c.AddService("MyApp"))
        .WithMetrics(metrics =>
        {
            metrics.AddHttpClientInstrumentation()
                   .AddRuntimeInstrumentation();
        })
        .WithTracing(tracing =>
        {
            tracing.AddHttpClientInstrumentation();
        });

    // Use the OTLP exporter if the endpoint is configured.
    var useOtlpExporter = !string.IsNullOrWhiteSpace(builder.Configuration["OTEL_EXPORTER_OTLP_ENDPOINT"]);
    if (useOtlpExporter)
    {
        builder.Services.AddOpenTelemetry().UseOtlpExporter();
    }

    return builder;
}

// Sample: https://github.com/aspire-dashboard/dotnet-sample
